Hardwood Outrigger Pads

Click here to view UHMW Outrigger Pads

7

BP2.753636

  • Multi-layered birch plywood
  • Standard 2.75″ thick pad has 52 layers
  • Bonded using water-proof-glue
  • Lagged, bolted or screwed on each side depending on size
  • Treated with a premium water sealer

Dimensions:

Made to any size or thickness

Order Now
IMG_1751b

BP22424, BP22020

  • Multi-layered birch plywood with UHWM containing collar
  • Bonded using water-proof-glue
  • Lagged, bolted or screwed on each side depending on size
  • Treated with a premium water sealer

Dimensions:

24″ x 24″ x 2″, 20″ x 20″ x 2″

Order Now

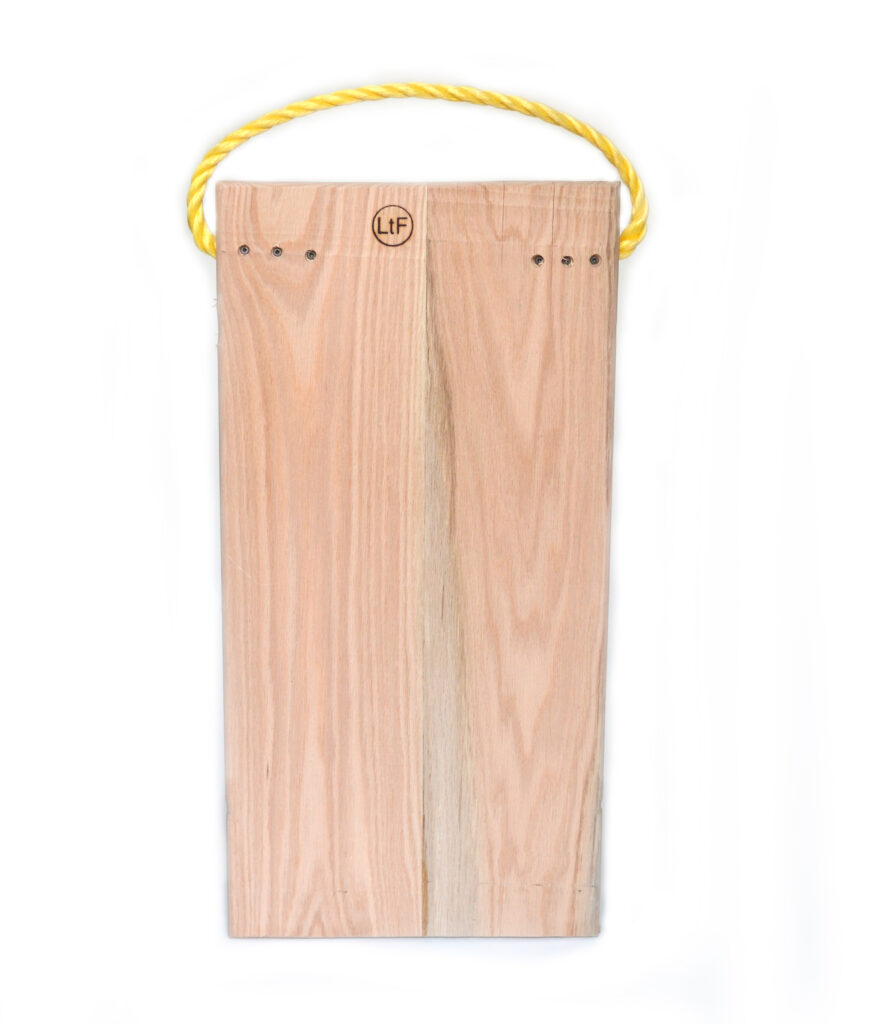

4

HW21428, HW22424, HW21818

  • 2 or 3 piece hardwood with rope handle
  • Constructed with 2 5/8 galvanized bolts

Dimensions:

28″ x 14″ x 2″, 24″ x 24″ x 2″, 18″ x 18″ x 2″

Order Now

Product Specifications

Product Size Lbs. Application S.W.C (Tons)
BP22020 20″x20″x2″ 21 Utility
BP22424 24″x24″x2″ 30 Utility
BP2.752424 24″x24″x2.75″ 38 Concrete 30
BP2.752828 28″x28″x2.75″ 42 Concrete 30
BP2.753030 30″x30″x2.75″ 63 Crane 30
BP3.53030 30″x30″x3.5″ 80 Crane 50
BP2.753636 36″x36″x2.75″ 90 Crane 30
BP3.53636 36″x36″x3.5″ 115 Crane 50
BP3.54242 42″x42″x3.5″ 157 Crane 75
HW21818 18″x18″x2″ 20 Utility Solid Wood
HW22424 24″x24″x2″ 28 Utility Solid Wood
HW21428 14″x28″x2″ 24 RBD Solid Wood
BP22424 24″x24″x2″ 31 Aerial Device With collar ring
BP22020 20″x20″x2″ 26 Aerial Device With collar ring

Customize your order

We make every order to meet your custom needs. We can customize pads to meet your specified:

  • Materials
  • Dimensions
  • Thickness
  • Number of Handles

Contact us to discuss your order.

Because we have no way of knowing how pads are being used no warranty is made. Take time to calculate the correct pad size for your application. Different ground conditions require proper set up applications. Industry Safety Standards suggest that the outrigger pad should be at least 3 times the size of the outrigger foot for proper support.
